PFX 인증서 생성

샘플 파일 test.cer과 test.p12를 이용하여 PFX 인증서를 생성합니다.

(공인인증서 der 파일과 key 파일을 적용해도 가능합니다.)

package PFXTestPackage;

import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.KeyStore;
import java.security.Security;
import java.security.cert.Certificate;
import java.security.cert.CertificateFactory;
import java.security.cert.X509Certificate;

public class PFXTest {

	static String certificatePath = "test.cer";
	static String privateKeyPath = "test.p12";

	static char[] p12Password = "password".toCharArray();

	public static void main(String[] args) throws Exception {

		Security.addProvider(new org.bouncycastle.jce.provider.BouncyCastleProvider());
		CertificateFactory certFactory = CertificateFactory.getInstance("X.509", "BC");

		X509Certificate certificate = (X509Certificate) certFactory
				.generateCertificate(new FileInputStream(certificatePath));

		KeyPairGenerator rsaGen = KeyPairGenerator.getInstance("RSA");
		final KeyPair pair = rsaGen.generateKeyPair();

		// pkcs12 key store 생성
		KeyStore pkcs12 = KeyStore.getInstance("PKCS12");
		pkcs12.load(null, null);

		pkcs12.setKeyEntry("privatekeyalias", pair.getPrivate(), "entrypassphrase".toCharArray(),
				new Certificate[] { certificate });

		// PFX 파일 저장
		try (FileOutputStream p12 = new FileOutputStream("PFXTest1.pfx")) {
			pkcs12.store(p12, "password".toCharArray());
		}

	}
}

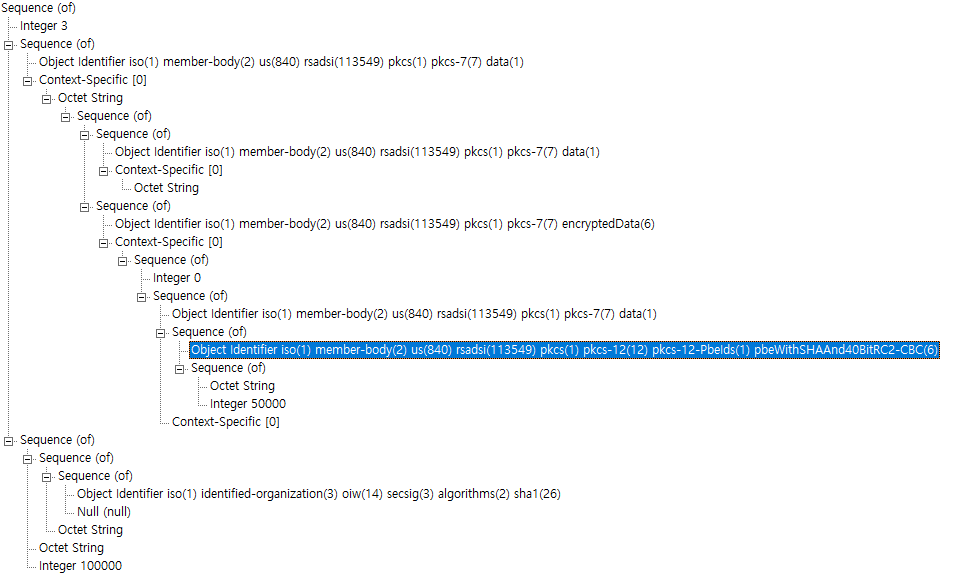

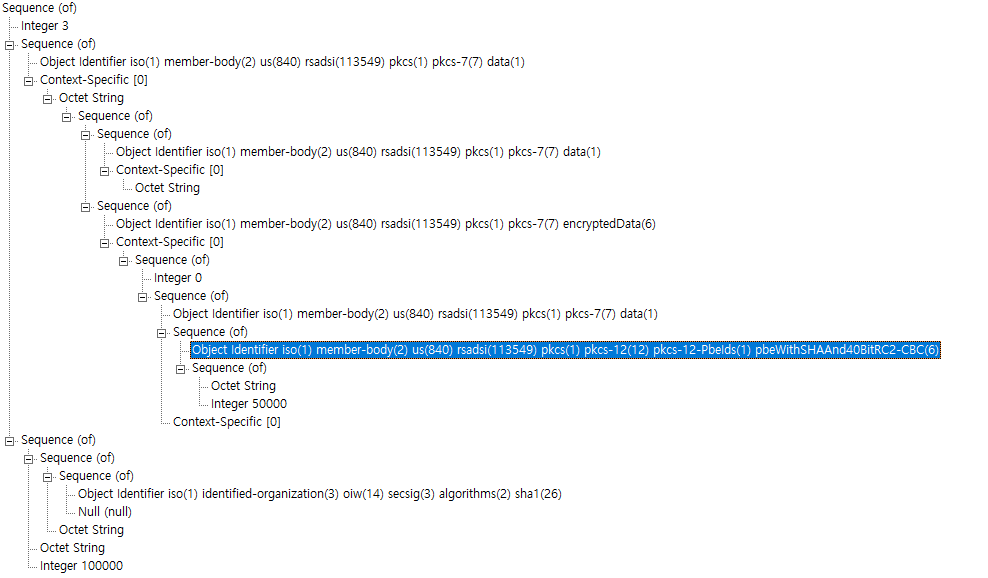

BerReader로 인증서를 열어보면 다음과 같습니다.





encryptedData 구조에 pbeWithSHAAnd40BitRC2-CBC 알고리즘이 default로 사용되는 것을 알 수 있습니다.





다음으로 샘플 파일을 이용하지 않고 인증서를 직접 생성합니다. 다음 블로그에서 참고했습니다.

https://gamlor.info/posts-output/2019-10-29-java-create-certs-bouncy/en/

Gamlor's Blog: Create HTTPS Certificates in Java with Bouncy Castle





package PFXTestPackage;

import org.bouncycastle.asn1.x500.X500Name;
import org.bouncycastle.asn1.x509.*;
import org.bouncycastle.cert.X509CertificateHolder;
import org.bouncycastle.cert.jcajce.JcaX509CertificateConverter;
import org.bouncycastle.cert.jcajce.JcaX509v3CertificateBuilder;
import org.bouncycastle.operator.ContentSigner;
import org.bouncycastle.operator.jcajce.JcaContentSignerBuilder;
import java.io.FileOutputStream;
import java.math.BigInteger;
import java.security.*;
import java.security.cert.X509Certificate;
import java.time.Instant;
import java.time.temporal.ChronoUnit;
import java.util.Date;

public class PFXTest {

	public static void main(String[] args) throws Exception {
		GeneratedCert rootCA = createCertificate("Test_rootCA", /* domain= */null, /* issuer= */null, /* isCa= */true);
		GeneratedCert issuer = createCertificate("Test_issuer", /* domain= */null, rootCA, /* isCa= */true);
		GeneratedCert domain = createCertificate("JooLib", "JooLib", issuer, /* isCa= */false);
		GeneratedCert otherD = createCertificate("test", "test", issuer, /* isCa= */false);

		char[] Password = "password".toCharArray();
		KeyStore keyStore = KeyStore.getInstance("PKCS12");

		// Key store expects a load first to initialize.
		keyStore.load(null, Password);

		// domain 인증서에 개인키와 인증서 체인을 저장한다.
		keyStore.setKeyEntry("JooLib", domain.privateKey, Password,
				new X509Certificate[] { domain.certificate, issuer.certificate, rootCA.certificate });
		keyStore.setKeyEntry("test", otherD.privateKey, Password,
				new X509Certificate[] { otherD.certificate, issuer.certificate, rootCA.certificate });

		X509Certificate[] certs = new X509Certificate[] { rootCA.certificate, domain.certificate };

		try (FileOutputStream store = new FileOutputStream("PFXTest2.pfx")) {
			keyStore.store(store, Password);
		}
	}

	// 인증서 체인을 생성하기 위해 발급자(issuer)의 인증서와 개인키를 가지고 있어야 한다.
	final static class GeneratedCert {
		public final PrivateKey privateKey;
		public final X509Certificate certificate;

		public GeneratedCert(PrivateKey privateKey, X509Certificate certificate) {
			this.privateKey = privateKey;
			this.certificate = certificate;
		}
	}

	/**
	 * @param cnName The CN={name} of the certificate. When the certificate is for a
	 *               domain it should be the domain name
	 * @param domain Nullable. The DNS domain for the certificate.
	 * @param issuer Issuer who signs this certificate. Null for a self-signed
	 *               certificate
	 * @param isCA   Can this certificate be used to sign other certificates
	 * @return Newly created certificate with its private key
	 */
	private static GeneratedCert createCertificate(String cnName, String domain, GeneratedCert issuer, boolean isCA)
			throws Exception {

		KeyPairGenerator keyGen = KeyPairGenerator.getInstance("RSA");
		KeyPair certKeyPair = keyGen.generateKeyPair();
		X500Name name = new X500Name("CN=" + cnName);

		BigInteger serialNumber = BigInteger.valueOf(System.currentTimeMillis());
		Instant validFrom = Instant.now();
		Instant validUntil = validFrom.plus(10 * 360, ChronoUnit.DAYS);

		// issuer가 없을 시 self-sign
		X500Name issuerName;
		PrivateKey issuerKey;
		if (issuer == null) {
			issuerName = name;
			issuerKey = certKeyPair.getPrivate();
		} else {
			issuerName = new X500Name(issuer.certificate.getSubjectDN().getName());
			issuerKey = issuer.privateKey;
		}

		// 인증서 정보 빌드
		JcaX509v3CertificateBuilder builder = new JcaX509v3CertificateBuilder(issuerName, serialNumber,
				Date.from(validFrom), Date.from(validUntil), name, certKeyPair.getPublic());

		if (isCA) {
			builder.addExtension(Extension.basicConstraints, true, new BasicConstraints(isCA));
		}

		// DNS 주소
		if (domain != null) {
			builder.addExtension(Extension.subjectAlternativeName, false,
					new GeneralNames(new GeneralName(GeneralName.dNSName, domain)));
		}

		// 인증서 서명
		ContentSigner signer = new JcaContentSignerBuilder("SHA256WithRSA").build(issuerKey);
		X509CertificateHolder certHolder = builder.build(signer);
		X509Certificate cert = new JcaX509CertificateConverter().getCertificate(certHolder);

		return new GeneratedCert(certKeyPair.getPrivate(), cert);
	}
}

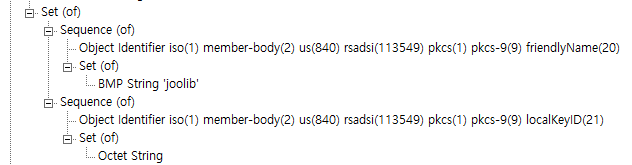

마찬가지로 BerReader로 열어봅시다. 여기서 Octet String을 확장하면 값이 잘 들어갔음을 확인할 수 있습니다.







PFX 파일을 이와 같이 만들 수 있습니다.

여기서 PKCS7 EncryptedData Type의 알고리즘을 변경해봅시다.



The Bouncy Castle FIPS Java API in 100 Examples (Final Draft)을 참고하였습니다.



public static byte[] createPfxPdu(char[] passwd, PrivateKey privKey, X509Certificate[] certs)
		throws GeneralSecurityException, OperatorCreationException, PKCSException, IOException {

	JcaX509ExtensionUtils extUtils = new JcaX509ExtensionUtils();
	PKCS12SafeBagBuilder caCertBagBuilder = new JcaPKCS12SafeBagBuilder(certs[1]);
	caCertBagBuilder.addBagAttribute(PKCSObjectIdentifiers.pkcs_9_at_friendlyName,
			new DERBMPString("CA Certificate"));

	// store the key certificate
	PKCS12SafeBagBuilder eeCertBagBuilder = new JcaPKCS12SafeBagBuilder(certs[0]);

	eeCertBagBuilder.addBagAttribute(PKCSObjectIdentifiers.pkcs_9_at_friendlyName,
			new DERBMPString("End Entity Key"));
	eeCertBagBuilder.addBagAttribute(PKCSObjectIdentifiers.pkcs_9_at_localKeyId,
			extUtils.createSubjectKeyIdentifier(certs[0].getPublicKey()));

	// store the private key
	PKCS12SafeBagBuilder keyBagBuilder = new JcaPKCS12SafeBagBuilder(privKey,
			new JcePKCSPBEOutputEncryptorBuilder(PKCSObjectIdentifiers.pbeWithSHAAnd3_KeyTripleDES_CBC)
					.setProvider("BC").build(passwd));
	keyBagBuilder.addBagAttribute(PKCSObjectIdentifiers.pkcs_9_at_friendlyName, new DERBMPString("End Entity Key"));
	keyBagBuilder.addBagAttribute(PKCSObjectIdentifiers.pkcs_9_at_localKeyId,
			extUtils.createSubjectKeyIdentifier(certs[0].getPublicKey()));

	// create the actual PKCS#12 blob.
	PKCS12PfxPduBuilder pfxPduBuilder = new PKCS12PfxPduBuilder();
	PKCS12SafeBag[] safeBags = new PKCS12SafeBag[2];
	safeBags[0] = eeCertBagBuilder.build();
	safeBags[1] = caCertBagBuilder.build();

	pfxPduBuilder
			.addEncryptedData(new JcePKCSPBEOutputEncryptorBuilder(PKCSObjectIdentifiers.pbeWithSHAAnd128BitRC2_CBC)
					.setProvider("BC").build(passwd), safeBags);
	pfxPduBuilder.addData(keyBagBuilder.build());
	return pfxPduBuilder.build(new JcePKCS12MacCalculatorBuilder().setProvider("BC"), passwd).getEncoded();
}

public static void main(String[] args) throws Exception {
	GeneratedCert rootCA = createCertificate("do_not_trust_test_certs_root", /* domain= */null, /* issuer= */null,
			/* isCa= */true);
	GeneratedCert issuer = createCertificate("do_not_trust_test_certs_issuer", /* domain= */null, rootCA,
			/* isCa= */true);
	GeneratedCert domain = createCertificate("local.gamlor.info", "local.gamlor.info", issuer, /* isCa= */false);

	char[] Password = "password".toCharArray();
	// create the actual PKCS#12 blob.
	X509Certificate[] certs = new X509Certificate[] { rootCA.certificate, domain.certificate };

	byte[] pdu = createPfxPdu(Password, domain.privateKey, certs);
	System.out.println(Hex.toHexString(pdu));


	try (FileOutputStream store = new FileOutputStream("PFXTest3.pfx")) {
		store.write(pdu);
	}
}

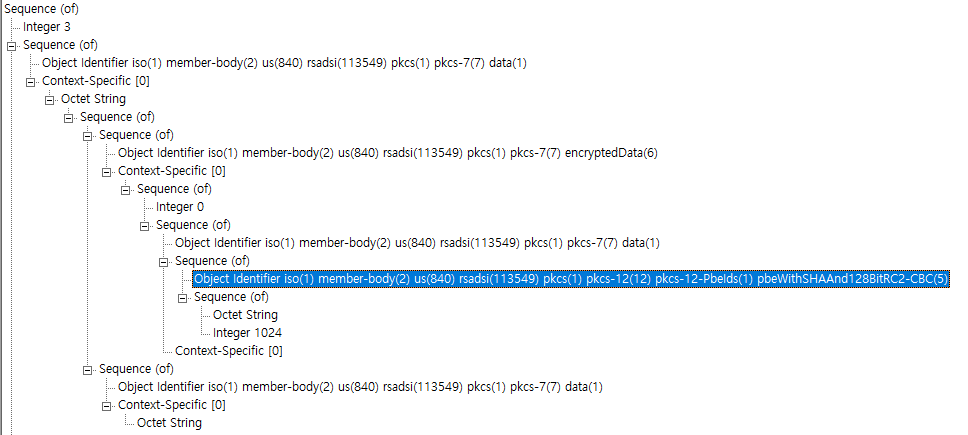

createPfxPdu 함수에서 PKCSObjectIdentifiers.pbeWithSHAAnd128BitRC2_CBC의 알고리즘을 변경할 수 있습니다.





bouncycastle에서 지원 가능한 알고리즘은 다음과 같습니다.

• pbeWithSHAAnd128BitRC2_CBC
• pbeWithSHAAnd128BitRC4
• pbeWithSHAAnd2_KeyTripleDES_CBC
• pbeWithSHAAnd3_KeyTripleDES_CBC
• pbewithSHAAnd40BitRC2_CBC (default)
• pbeWithSHAAnd40BitRC4

• AES128_CBC
• AES192_CBC
• AES256_CBC
• SEED_CBC



openssl에서는 다음 알고리즘을 지원합니다.

• pbewithSHAAnd40BitRC2_CBC (default)
• pbeWithSHAAnd3_KeyTripleDES_CBC

• AES-128-CBC
• AES-192-CBC
• AES-256-CBC



AES CBC 모드는 Windows에서 열리지만 Mac에서는 열리지 않습니다.

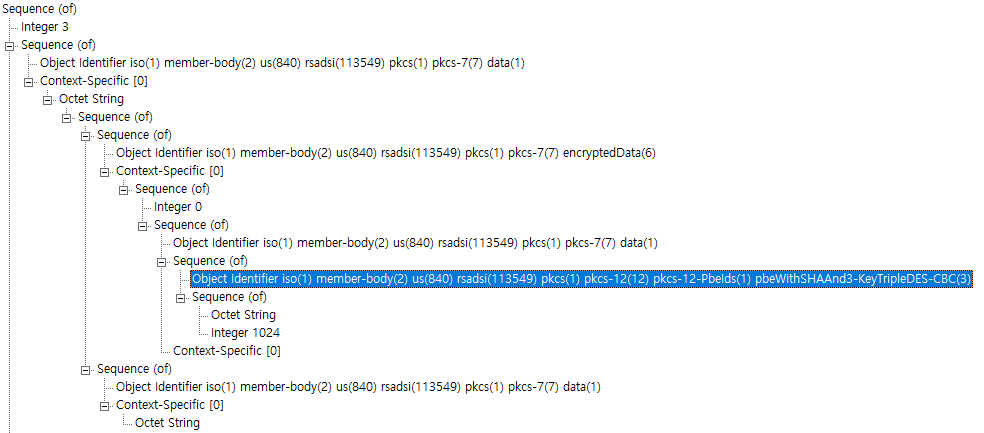

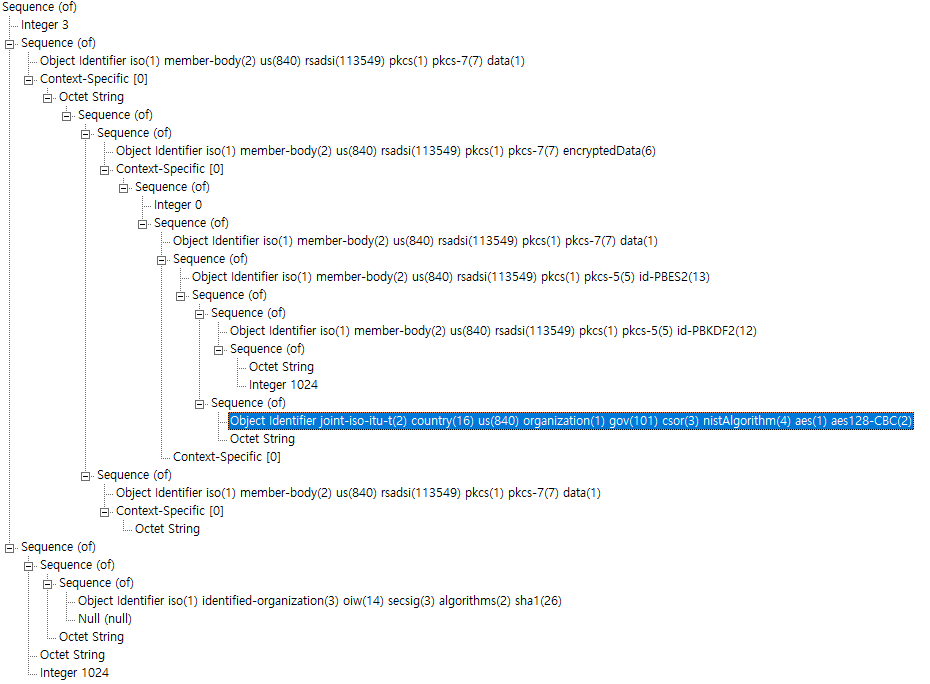

AES 및 SEED 사용시 구조가 변경됩니다.



예시)

JcePKCSPBEOutputEncryptorBuilder(CMSAlgorithm.AES128_CBC)









bouncycastle을 이용하여 PFX 인증서 생성 및 지원하는 알고리즘을 확인했습니다.



잘못된 내용이나 궁금하신 내용을 알려주시면 감사하겠습니다.
